Offset Top Hinge Style

External Links:
– Printable Data Sheets
– Videos of this Solution
– Example of before and afters
[See bottom of the page for more]

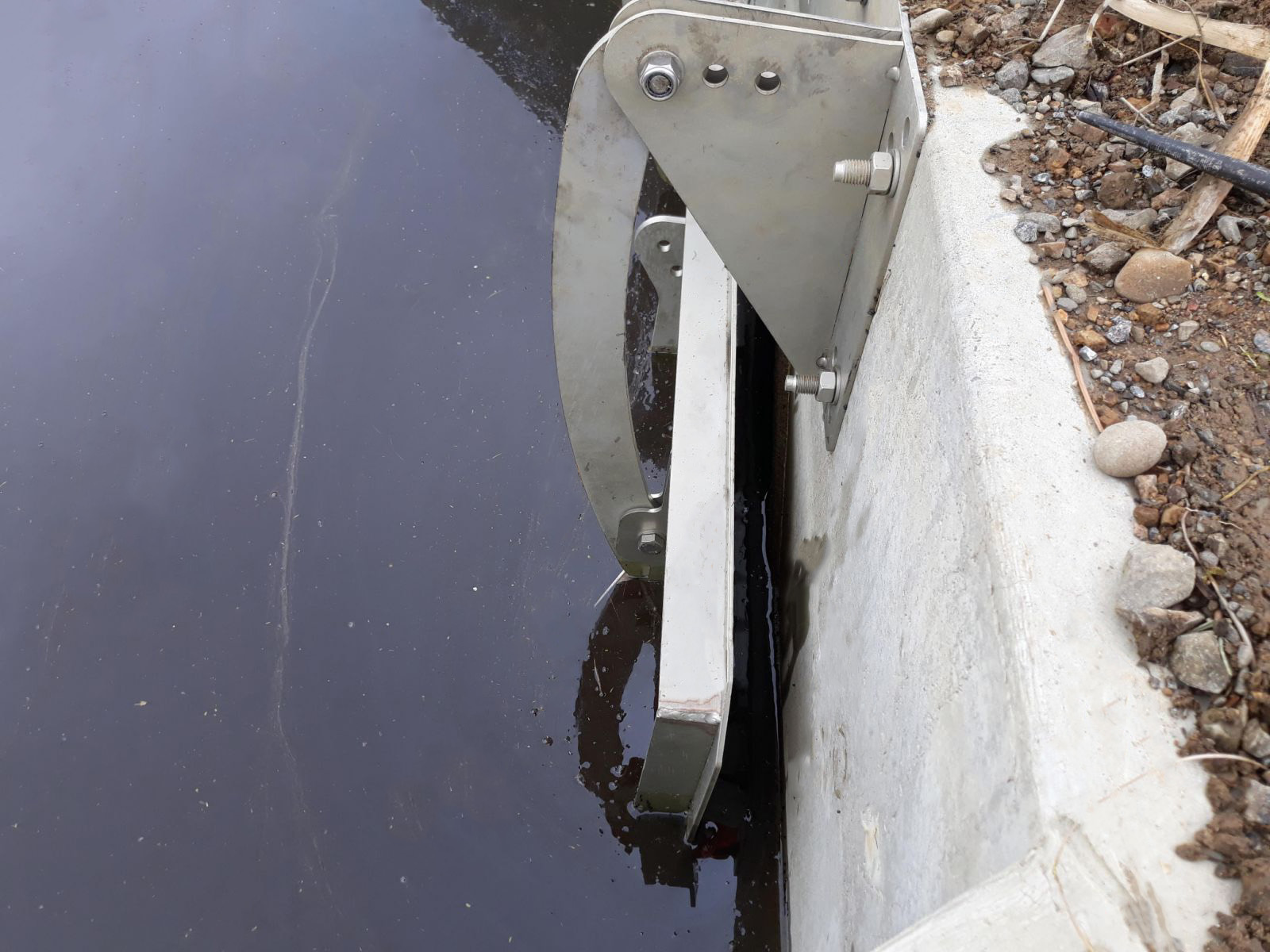

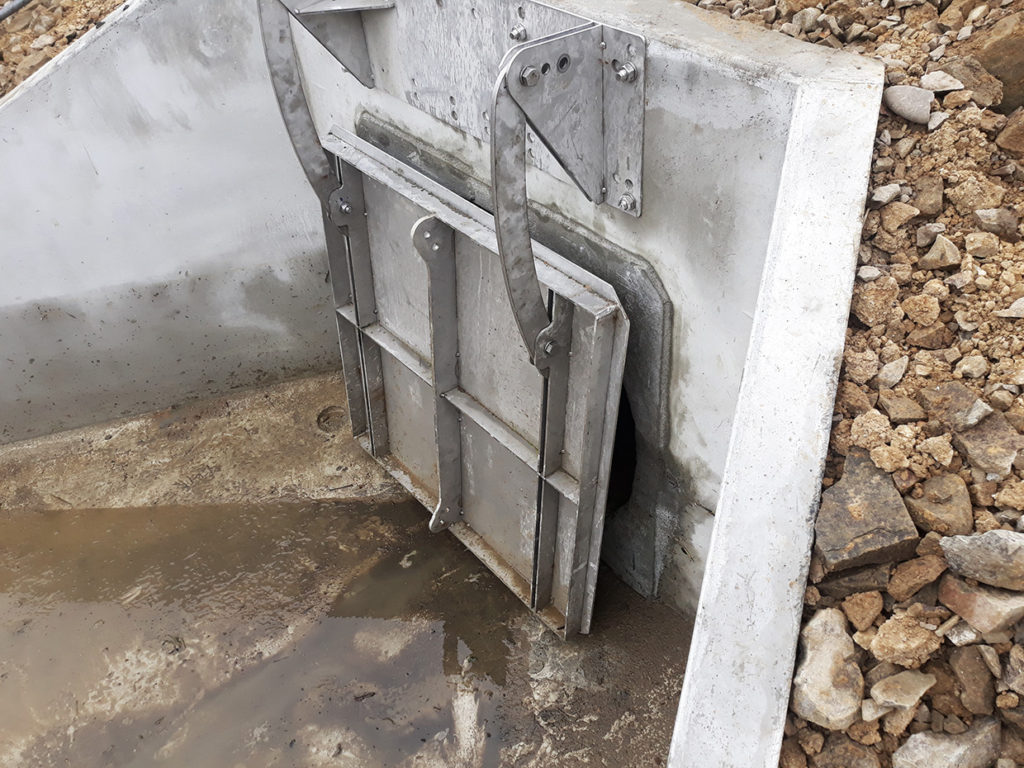

ATS Fish Friendly Flap Gates have an adjustable offset top hinge-point that allows a variable delay in the closing of the flap.
Fish have a greater opportunity to migrate upstream.
Upstream water quality is usually improved with greater tidal flushing.
The flap still closes once the water level reaches a certain level.

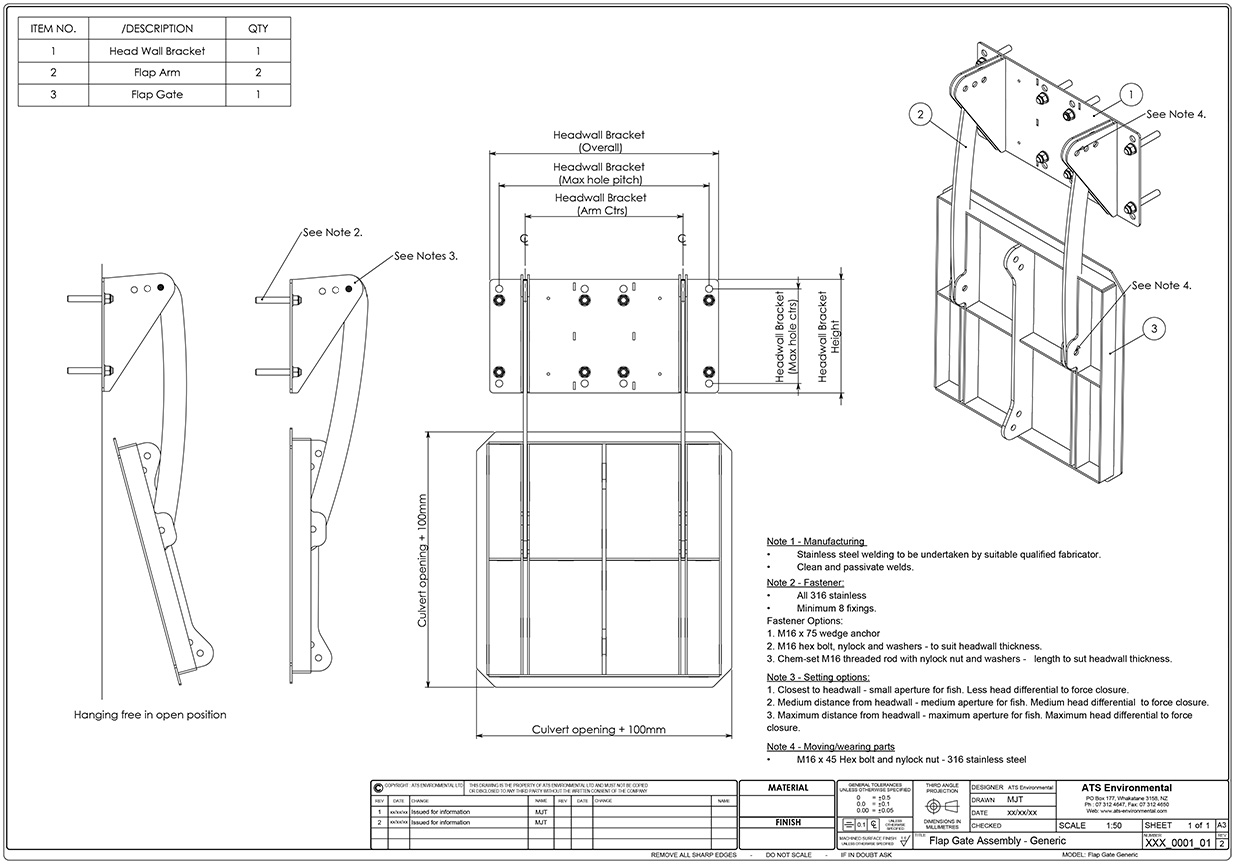

Drawings

Flap-Gate-Generic_2-1Download

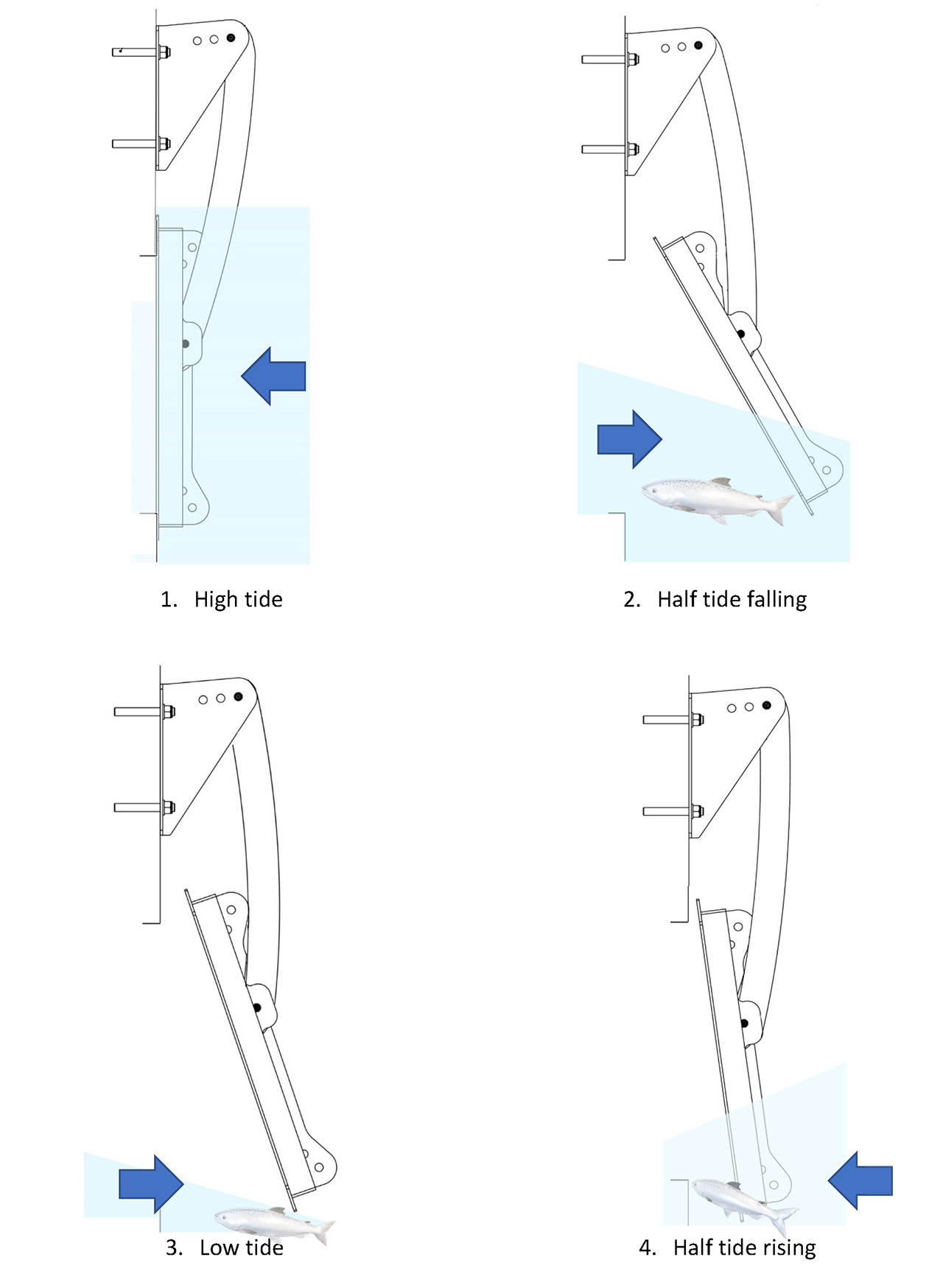

Tide Stages

Pipe Mounted Flap-Gate Demonstration
