Here we have a collection of Before and After photos of remediation work.

The types of installations/solutions include:

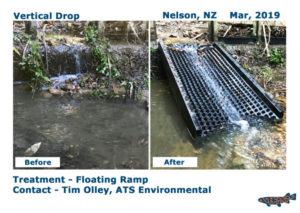

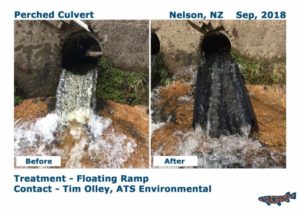

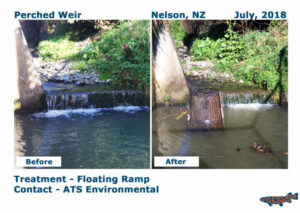

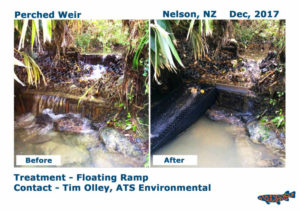

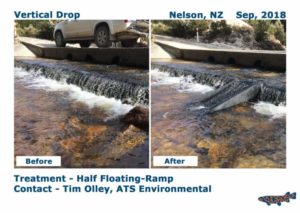

Floating Ramps

Floating ramps are a robust, easy-to-install option for low to medium drops. The surface can be smooth, dimpled, or have mussel ropes to give fish a choice of flows. In addition, floating ramps help fish navigate perched structures. We have a few videos and examples of this solution. Click [Here] to view the playlist.

(Click the images to enlarge)

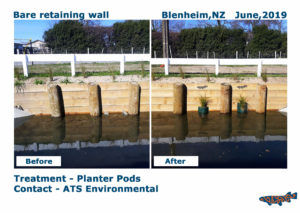

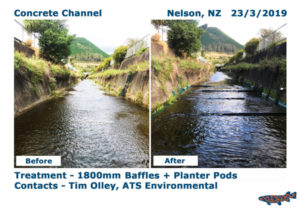

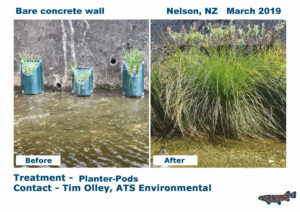

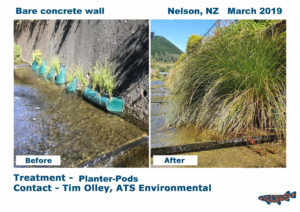

Planter Pods

Planter pods are quick and easy to install. Planter pods are a convenient way of getting vegetation onto hard structures to help with aesthetics, habitat, and fish passage. We have a few videos and examples of this solution. Click [Here] to view the playlist.

(Click the images to enlarge)

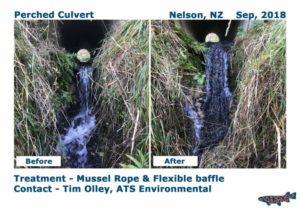

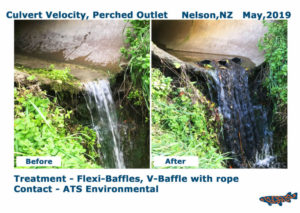

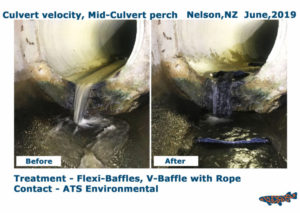

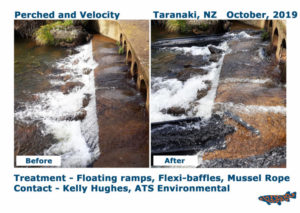

Flexi-Baffles & Rope Combination

Baffles with a combination of rope are used typically in smaller, steeper culverts where it is difficult to install a full array of flexible baffles. The rope helps break up the flow, and the baffles create resting pools for the fish. We will have videos and examples on baffles with a combination of rope soon, but you can always view our other videos on other solutions [Here].

(Click the images to enlarge)

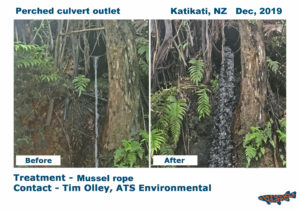

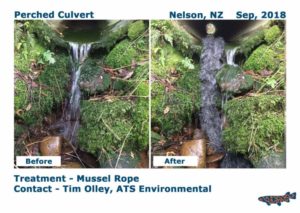

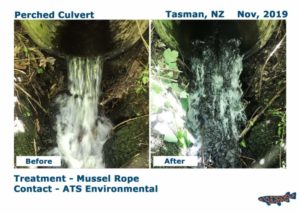

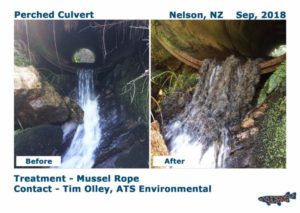

Mussel Rope in Culvert

The rope is commonly used through a culvert that is too small to fit baffles. The rope breaks up flows and mimics tree roots that some fish utilize to help make their way up waterways. We will have videos and examples on the rope in culverts soon, but you can always view our other videos on other solutions [Here].

(Click the images to enlarge)

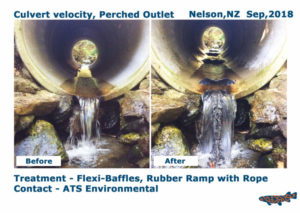

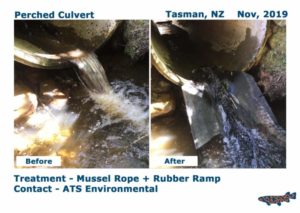

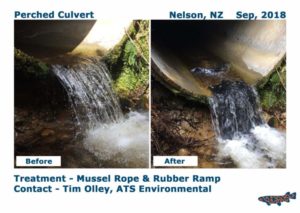

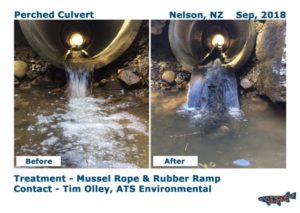

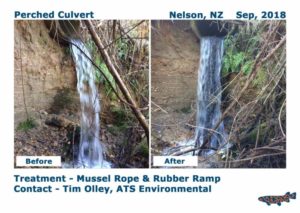

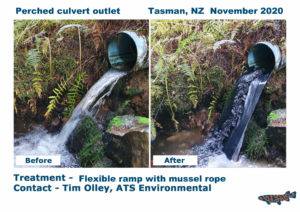

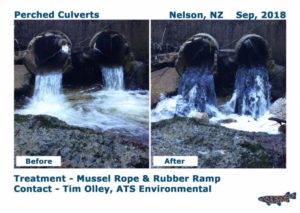

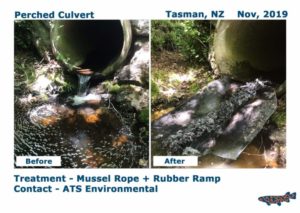

Rubber Ramp & Rope

Rubber ramp and rope combinations are typically used on perched structures where it is unnecessary or practical to use a floating ramp. We have a few videos and examples of this solution. Click [Here] to view the playlist.

(Click the images to enlarge)

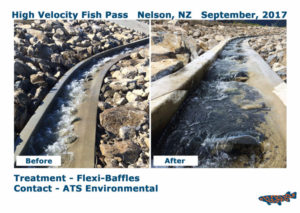

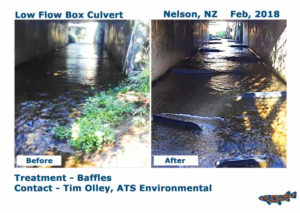

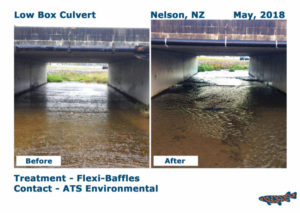

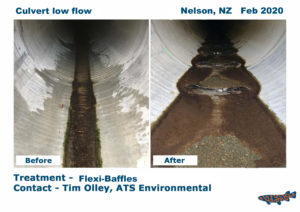

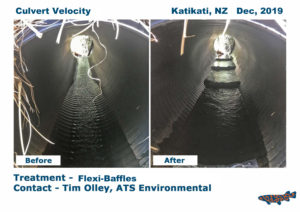

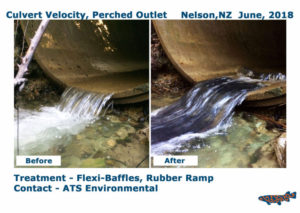

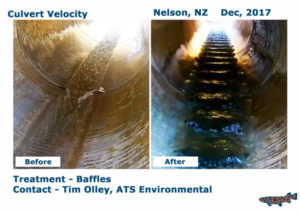

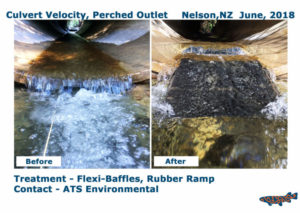

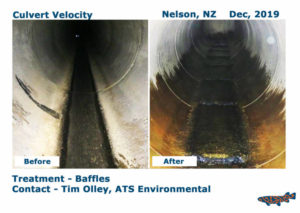

Flexi-Baffles

Baffles are used in several applications, including round or flat bottomed structures. Baffles break up flows, increase the depth and create resting pools, giving fish more choices as they navigate through or over structures. We have a few videos and examples of this solution. Click [Here] to view the playlist.

(Click the images to enlarge)

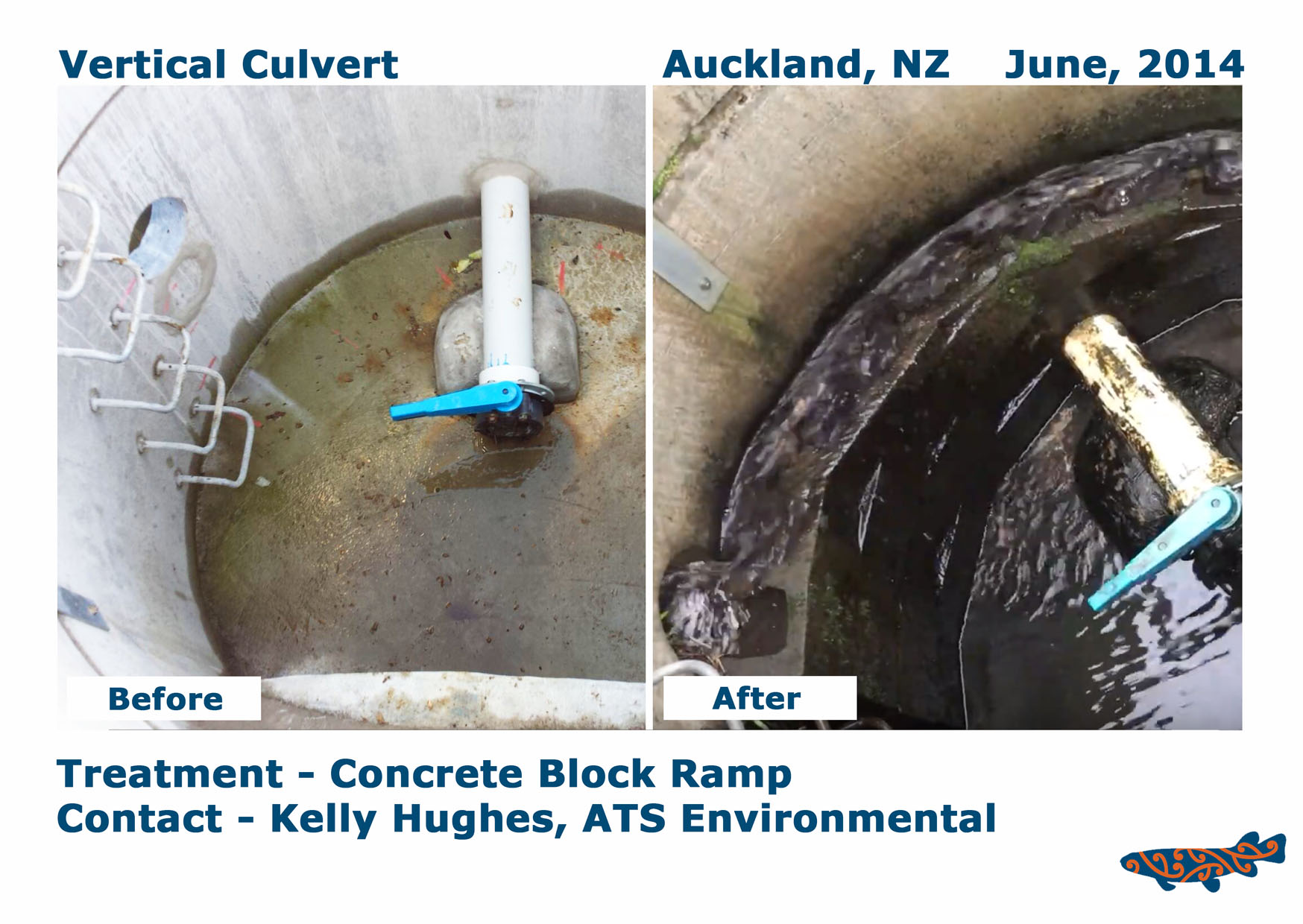

Vertical Culvert

Vertical culverts are challenging for all fish. They can be difficult to remediate as they vary in their nature. Fixes will need to be specifically designed for each site. We have a few videos on this solution. Click [Here] to view the playlist.

Vertical Culvert

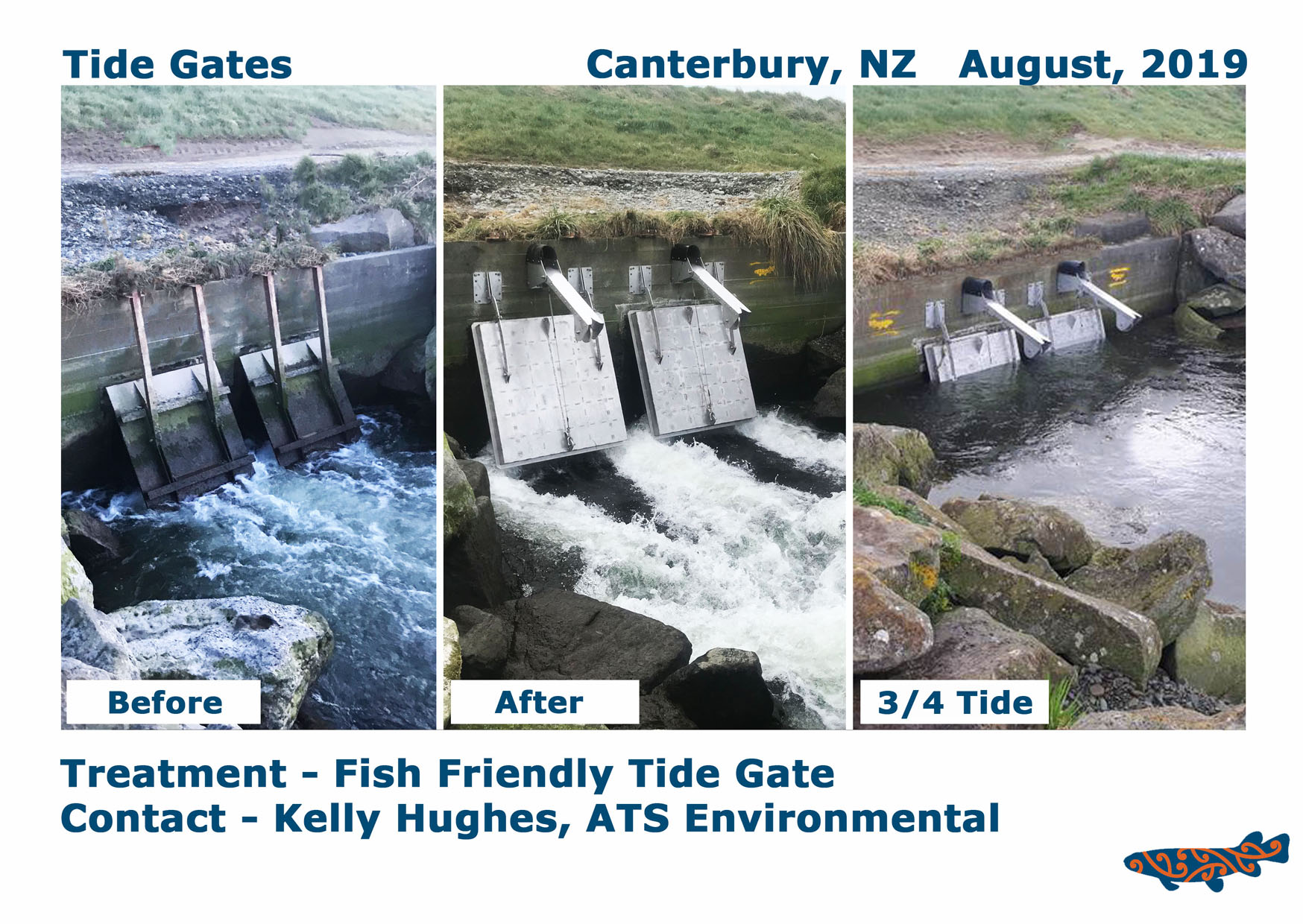

Fish-Friendly Flood-Gate

Tide-gates or flood-gates are often the first and most significant barrier that fish encounter when migrating from the ocean. The unique fish-friendly mechanism delays the closing of the gate, giving fish more opportunity to pass through. We have a few videos and examples of this solution. Click [Here] to view the playlist.

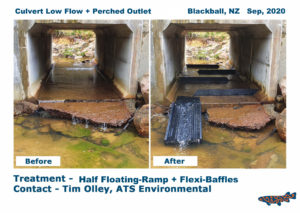

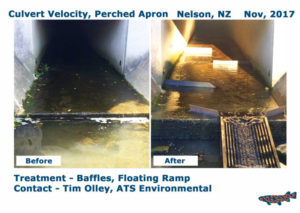

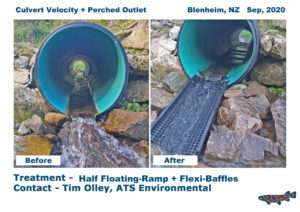

Flexi-Baffles & Floating Ramp

Flexi-baffles were installed to improve the fish passage through the culvert. The floating ramp gives access to the perched apron for most species. We will have videos and examples on baffles with a combination of a floating ramp soon, but you can always view our other videos on other solutions [Here].

(Click the images to enlarge)
